Part-Turn Manual Gear Operator by STARD GEARS for Ball, Butterfly, And Plug Valves

SUZHOU, JIANGSU, CHINA, August 28, 2026 /EINPresswire.com/ — STARD GEARS simplifies industrial flow control by manufacturing the specific Part-Turn Manual Gear Operator required to drive ball, butterfly, and plug valves safely and accurately. By distinguishing between the S008 fixed manual gearbox for primary operation and the SLJ declutchable manual override for pneumatic backup, the company ensures procurement teams match the correct mechanism to their pipeline safety protocols. Selecting the right gearbox architecture guarantees operators can manage process flow without compromising valve integrity or safety.

The Part-Turn Manual Gear Operator Matches 90-Degree Valve Motion

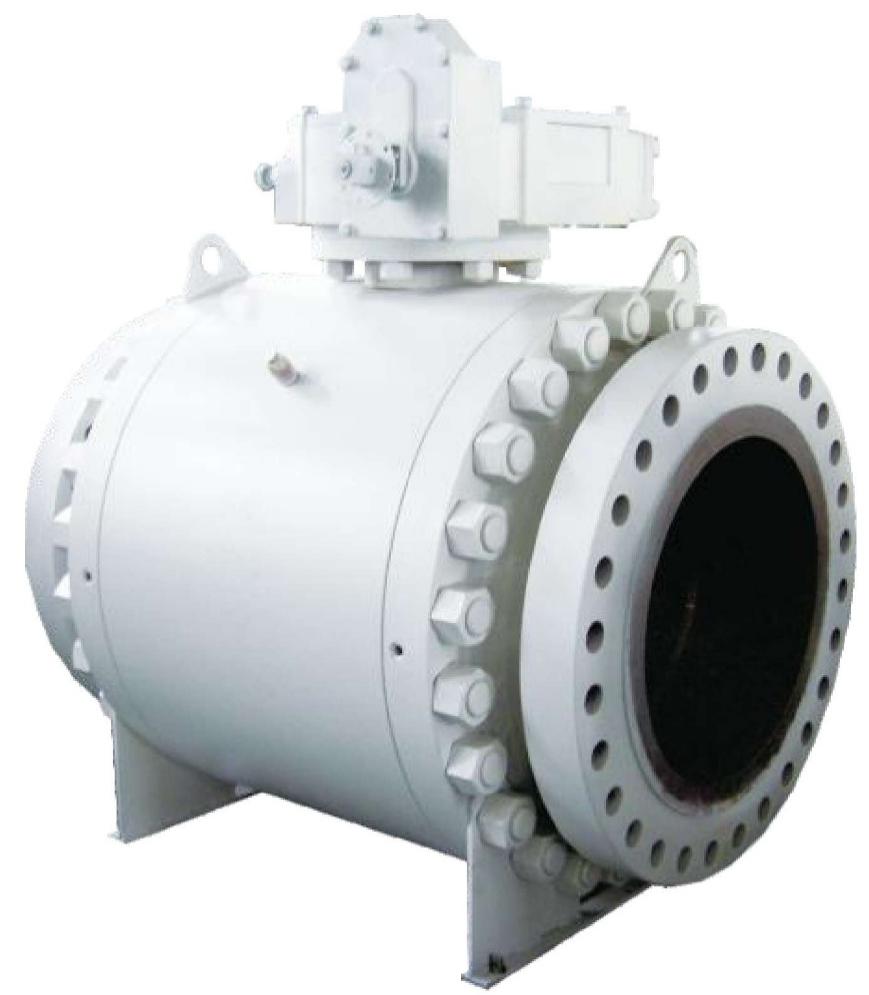

When upgrading pipeline infrastructure, the fundamental requirement for a quarter-turn gearbox is translating human input into a smooth, controlled 90-degree rotation. Ball, butterfly, and plug valves rely on this precise motion to open, close, and seal effectively. STARD GEARS addresses this core need through the S008 fixed manual gearbox series, engineered to manage high seating and unseating forces. By converting multiple handwheel turns into a single, high-torque quarter turn, this mechanism allows one operator to safely cycle large-diameter valves.

The S008 series extends across a broad spectrum of industrial demands, covering an output torque range from 720 Nm up to an imposing 250,000 Nm. This capacity means the same gearbox architecture serves both small utility lines and massive main-line block valves. To support this, STARD GEARS provides 17 technical sizes, offering gear ratios spanning from 42:1 to 7500:1. This systematic coverage allows EPC contractors to find an exact mechanical match for their torque profiles. Buyers must confirm if the valve requires automated actuation before finalizing their gearbox selection.

Valve Torque and Human Input Determine the Correct Model

Selecting the appropriate gearbox requires balancing the valve’s maximum operating torque against the physical capabilities of the human operator. The S008 technical data sheet explicitly lists rated input torque, output torque, mechanical efficiency, and mechanical advantage for each size. This transparency allows engineering teams to perform direct calculations. If the required input force exceeds ergonomic limits—typically 300 to 400 Newtons of rim pull—procurement teams must specify a larger gearbox size or different gear ratio.

Achieving lower input force by selecting a higher gear ratio introduces a necessary trade-off: increased operation time. While a model with a 3525:1 ratio easily manages 150,000 Nm with minimal physical effort, it requires significantly more handwheel turns to complete the 0-to-90-degree stroke. During an emergency shutdown, this extended operation time must be factored into safety planning. Beyond torque and turns, correct model selection also depends on physical integration details. Valve stem dimensions, flange standards, and mounting orientation must be verified for seamless deployment.

Position Indication and Mechanical Stops Support Field Adjustment

Accurate valve positioning is critical for maintaining process control and preventing internal seat damage. The gear operator utilizes integrated position indicators and mechanical stops to align the gearbox with the valve’s fully open and closed states. Because machining tolerances and bracket dimensions vary, these endpoints must be carefully calibrated on the actual valve assembly during integration. The gearbox connects to the valve via a standardized bottom flange. During assembly, technicians must rigorously verify the concentricity between the flange and the shaft bore to prevent premature wear.

Once mechanically integrated, the operator’s travel stops allow for a 0 to 90-degree stroke with a crucial ±5-degree adjustment range. This built-in adjustability compensates for minor assembly discrepancies, ensuring the gearbox’s mechanical limits correspond precisely with the valve’s internal sealing position. Proper calibration prevents over-torquing the valve disc or ball into the seat, avoiding severe damage. Additionally, rotational direction—typically clockwise to close and counter-clockwise to open—must be visually verified against standard operating procedures to eliminate operator error during a crisis.

Housing, Temperature and Protection Options Extend Application Range

Industrial environments impose severe stresses on mechanical equipment, making the construction materials of a gearbox just as important as its torque output. The standard S008 configuration features a rugged cast iron housing, a protected steel input shaft, a durable ductile iron worm gear, and reliable NBR sealing. This baseline safely supports operating temperatures from -20°C to 120°C, accommodating most standard industrial applications. The robust housing protects internal gearing from physical impact while maintaining precise alignment under torsional loads.

When projects move beyond standard conditions, the specification must shift to specialized materials and enhanced protection classes. For environments prone to flooding or underground burial, an IP68 ingress protection rating becomes mandatory to prevent water and abrasive particles from destroying the lubricant. Extreme thermal environments require specific upgrades; STARD GEARS offers high-temperature modifications withstanding up to 200°C, and low-temperature variants engineered for -46°C climates. Specialized process conditions—such as highly corrosive atmospheres—may necessitate aluminum bronze worm gears, stainless steel shafts, and interlocking systems.

Fixed S008 and Declutchable SLJ Serve Different Manual Roles

The fundamental architecture of a gear operator depends on whether it serves as the primary driver or as a secondary backup system. Procurement teams must clearly define this role before analyzing torque charts. The S008 series is designed for fixed manual operation. It relies on a permanent, direct mechanical connection to drive 90-degree valves where automated control is unnecessary. Covering an output range from 720 Nm to 250,000 Nm, this fixed architecture is the standard choice for isolation valves and manual throttling applications where human intervention is the sole control method.

Conversely, the SLJ ductile-iron declutch gearbox is engineered specifically as a manual override for automated systems. It pairs with pneumatic actuators, remaining disengaged during normal automated operations to allow the actuator to drive the valve freely. When instrument air fails or commissioning requires local control, an operator uses a lever to manually engage the SLJ’s worm gear. Operating this declutchable mechanism requires adhering to strict isolation procedures—the pneumatic supply must be safely vented or locked out before manual mode is engaged to prevent dangerous movement.

The Final Choice is Fixed Manual Operation or Pneumatic Backup

Concluding the procurement process requires a definitive choice between the S008 fixed manual architecture and the SLJ declutchable override system. While both designs expertly manage the 90-degree motion required for quarter-turn valves, they dictate entirely different integration paths. The installation interfaces, daily operation frequencies, and safety isolation procedures diverge significantly between primary manual operation and secondary pneumatic backup.

Engineers and purchasing managers must evaluate the specific needs of their pipeline segment—assessing the likelihood of power failure, the necessity of automated control, and the physical capabilities of maintenance personnel. By reviewing comprehensive gearbox classifications and technical data available through https://www.stard-gears.com/, project teams can request the precise general assembly drawings and performance charts necessary to finalize their specification, ensuring the chosen gear operator delivers reliable flow control.
